Ajax form in asp.net MVC core 3.1

byZafar Ali Khan Post a Comment
Ajax form in asp.net MVC core 3.1
In this article we will how to insert record in database using Ajax Form in asp.net core.
  • Create new asp.net core mvc project
  • Enable migrations
  • Create dbContext class
  • Create Stored Procedure
  • Create Interface (IEmployeeDbService)
  • Create Class (EmployeeDbService)
  • Create Controller (EmployeeDbController)
  • Create Action Method(Create) in the controller
  • Add View to the action method


1. Stored Procedure
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
Create proc [dbo].[sp_Employee_SaveNew]
@Name varchar(150),
@DOB datetime,
@JobTitle varchar(50),
@Address varchar(200),
@EmployeeID int=null output
as
INSERT INTO [dbo].[Employee]
           ([Name]
           ,[DOB]
           ,[JobTitle]
           ,[Address])
     VALUES
           (@Name
           ,@DOB
           ,@JobTitle
           ,@Address)
set @EmployeeID=SCOPE_IDENTITY();
EmployeeModel
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Threading.Tasks;

namespace MyCoreProject.Models
{

    public class EmployeeModel
    {
        public int EmpID { get; set; }
        [Required]
        [Display(Name="Employee Name")]
        public string Name { get; set; }
        [Required]
       [Display(Name="Date Of Birth")]
        public DateTime? DOB { get; set; }
        [Required]
        [Display(Name="Job Title")]
        public string JobTitle { get; set; }
        [Required]
        [Display(Name = "Address")]
        public string Address { get; set; }
    }

}

2. IEmployeeDbService

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
using MyCoreProject.Models;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace MyCoreProject.Areas.coreapi.Services
{
    public interface IEmployeeDbService
    {
        int Create(EmployeeModel model);
    }
}
3. EmployeeDbService
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
using MyCoreProject.Models;
using System;
using System.Collections.Generic;
using System.Data.Common;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.EntityFrameworkCore;
using Microsoft.Data.SqlClient;

namespace MyCoreProject.Areas.coreapi.Services
{
    public class EmployeeDbService : IEmployeeDbService
    {

        public int Create(EmployeeModel model)
        {
            MyDbContext _db = new MyDbContext();
            DbConnection _con = _db.Database.GetDbConnection();
            DbCommand _com = _con.CreateCommand();
            try
            {

                var _parameters = new[] {
                new SqlParameter(){ ParameterName="@Name",Value=model.Name,Direction= System.Data.ParameterDirection.Input },
                new SqlParameter(){ ParameterName="@DOB",Value=model.DOB,Direction= System.Data.ParameterDirection.Input },
                new SqlParameter(){ ParameterName="@JobTitle",Value=model.JobTitle,Direction= System.Data.ParameterDirection.Input },
                new SqlParameter(){ ParameterName="@Address",Value=model.Address,Direction= System.Data.ParameterDirection.Input },
                 new SqlParameter(){ ParameterName="@EmployeeID",Value=0,Size=4,Direction= System.Data.ParameterDirection.Output },
                };

                var _effectedRows = _db.Database.ExecuteSqlRaw("exec sp_Employee_SaveNew @Name,@DOB,@JobTitle,@Address,@EmployeeID output",
                    _parameters);
                int employeeid = int.Parse(_parameters[4].Value.ToString());
                return employeeid;
            }
            catch (Exception ae)
            {
                throw new Exception(ae.Message);
            }
            finally
            {
                _con.Close();
            }
        }
}
}
ConfigureServices
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
 public void ConfigureServices(IServiceCollection services)
        {
                        services.AddTransient<IEmployeeDbService, EmployeeDbService>();
            //services.AddTransient<IImageWriter,ImageWriter>();
            services.AddMvc();
            services.AddControllers().AddJsonOptions(
                x => x.JsonSerializerOptions.WriteIndented=true
                );
            services.AddControllersWithViews();
            services.AddDbContext<MyDbContext>();
}
5. EmployeeDbController
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Http;
using MyCoreProject.Areas.coreapi.Services;
using MyCoreProject.Models;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace MyCoreProject.Controllers
{


    public class EmployeeDbController : Controller
    {
         IEmployeeDbService _employeeDbService;
        public EmployeeDbController(IEmployeeDbService employeeDbService)
        {
            _employeeDbService = employeeDbService;
        }


        public IActionResult Create()
        {
            EmployeeModel model = new EmployeeModel();
            return View(model);
        }

        [HttpPost]
        public JsonResult Create(EmployeeModel model)
        {
            int empid = _employeeDbService.Create(model);

            return Json(new
            {
                Error = empid <= 0 ? true : false,
                employeeId = empid
            });
        }
    }
}

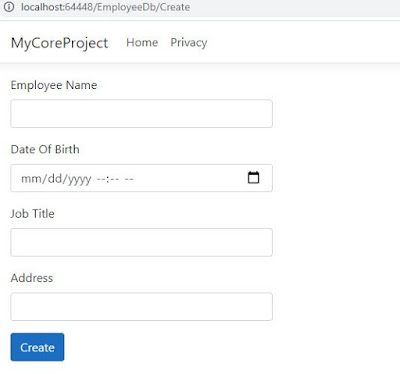

6. View
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
@model MyCoreProject.Models.EmployeeModel

@{
    ViewData["Title"] = "Create";
}
@addTagHelper *, Microsoft.AspNetCore.Mvc.TagHelpers

<div class="row">
    <div class="col-md-4">
        <form asp-action="Create" asp-area="" asp-controller="EmployeeDb" data-ajax-success="CreateOnSuccess"
              data-ajax="true" data-ajax-method="POST">
            <div asp-validation-summary="ModelOnly" class="text-danger"></div>
            <div class="form-group">
                <label asp-for="Name" class="control-label"></label>
                <input asp-for="Name" class="form-control" />
                <span asp-validation-for="Name" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="DOB" class="control-label"></label>
                <input asp-for="DOB" class="form-control" />
                <span asp-validation-for="DOB" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="JobTitle" class="control-label"></label>
                <input asp-for="JobTitle" class="form-control" />
                <span asp-validation-for="JobTitle" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="Address" class="control-label"></label>
                <input asp-for="Address" class="form-control" />
                <span asp-validation-for="Address" class="text-danger"></span>
            </div>
            <div class="form-group">
                <input type="submit" value="Create" class="btn btn-primary" />
            </div>
        </form>
    </div>
</div>


@section Scripts {
    @{await Html.RenderPartialAsync("_ValidationScriptsPartial");}
    <script src="@Url.Content("~/lib/jquery-validation-unobtrusive/jquery.unobtrusive-ajax.js")"></script>
    <script>
        var CreateOnSuccess = function datasuccess(context) {
            console.log(context);
            if (context.error == false) {
                alert("Record Inserted")
            }
            else {
                alert('Error occured');
            }
        }
    </script>
}

MyDbContext
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.Configuration;
using System;
using System.Collections.Generic;
using System.IO;
using System.Linq;
using System.Threading.Tasks;

namespace MyCoreProject.Models
{
    public class MyDbContext:DbContext
    {
        public MyDbContext():base()
        {

        }
        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
        {
            if (!optionsBuilder.IsConfigured)
            {
                IConfigurationRoot configuration = new ConfigurationBuilder()
                   .SetBasePath(Directory.GetCurrentDirectory())
                   .AddJsonFile("appsettings.json")
                   .Build();
                optionsBuilder.UseSqlServer(configuration.GetConnectionString("MyDbConnection") );
            }

        }
        protected override void OnModelCreating(ModelBuilder modelBuilder)
        {
            base.OnModelCreating(modelBuilder);
        }
        DbSet<tblTest> tblTests { get; set; }

    }
}

appsettings.json
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft": "Warning",
      "Microsoft.Hosting.Lifetime": "Information"
    }
  },
  "ConnectionStrings": {
    "MyDbConnection": "Integrated Security=SSPI;Persist Security Info=False;Initial Catalog=MyDB;Data Source=(local)"
  },
  "AllowedHosts": "*"
}
